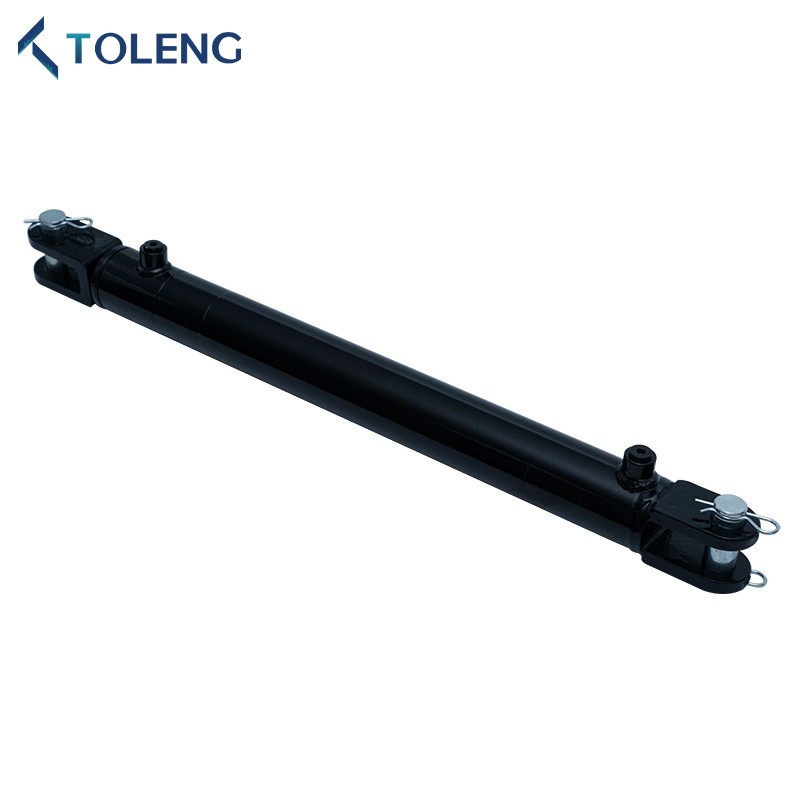

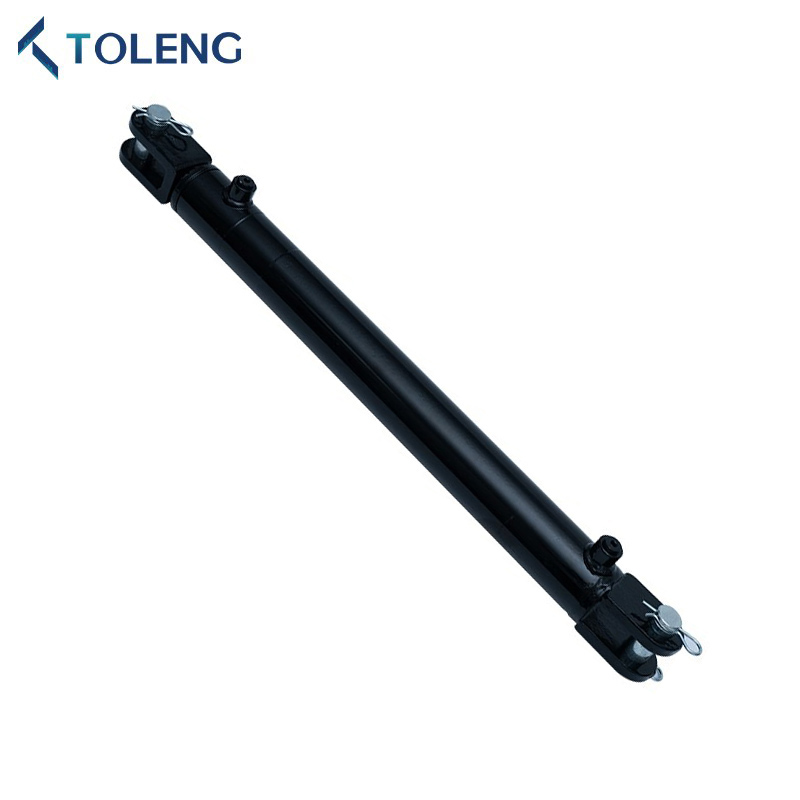

Standard -Hydraulikzylinder der WCL -Serie
Toleng ist ein renommierter Lieferant von hydraulischen Zylindern für industrielle Anwendungen in China. Unsere Zylinder erfüllen alle wichtigen Branchenstandards, wobei andere Spezifikationen auf Anfrage verfügbar sind. Alle Toleng Standard WCL -Serie -Weldhydraulikzylinder sind so konzipiert, dass sie einen langen und effizienten Service mit geringer Wartungsbedarf bieten und eine hohe Produktivität während der gesamten Lebensdauer des Produkts garantieren.
Anfrage absenden
Produktbeschreibung
Die WCL -Serie Toleng Standard Wcl Series Wieshydraulikzylinder ist eine spezielle Komponente, die die einzigartigen und spezifischen Anforderungen in verschiedenen Branchen erfüllt. Mit Präzision und Innovation verarbeitet, bietet es außergewöhnliche Leistung und Zuverlässigkeit. Tolengs Expertise stellt sicher, dass dieser Zylinder so konstruiert ist, dass die Herausforderungen durch unkonventionelle Anwendungen durchgeführt werden.
Die hydraulischen Zylinder der WCL -Serie sind einfach zu installieren und zeigen Hochleistungen. Jeder Zylinder wird strenge Tests unterzogen, die die Industriestandards übertrafen und maximale Zuverlässigkeit und Leistung garantieren. Darüber hinaus sind sie kostengünstig und sind immer sehr gefragt.
Die hydraulischen Zylinder der WCL -Serie sind einfach zu installieren und zeigen Hochleistungen. Jeder Zylinder wird strenge Tests unterzogen, die die Industriestandards übertrafen und maximale Zuverlässigkeit und Leistung garantieren. Darüber hinaus sind sie kostengünstig und sind immer sehr gefragt.
Standard -Hydraulikzylinderspezifikation der WCL -Serie
1. Arbeitsdruck: 3000 psi
2.Rod: Stahl, Induktion gehärtet und verchromt plattiert
3.piston: duktiles Eisen für eine erhöhte Haltbarkeit
4.tube: Stahl, geschliffen und präzision beendet
5.grand: Gewinde
6.pin: Stahl, Zinkplatt
7. Seals: Hallite, Aston, Nok, DZ usw. Top -Qualität. Anpassbar.
8. Paint: Schwarz, grün, rot, gelb usw. sind benutzerdefinierte Farben erhältlich.
2.Rod: Stahl, Induktion gehärtet und verchromt plattiert
3.piston: duktiles Eisen für eine erhöhte Haltbarkeit
4.tube: Stahl, geschliffen und präzision beendet
5.grand: Gewinde
6.pin: Stahl, Zinkplatt
7. Seals: Hallite, Aston, Nok, DZ usw. Top -Qualität. Anpassbar.
8. Paint: Schwarz, grün, rot, gelb usw. sind benutzerdefinierte Farben erhältlich.
Standardtechnische Parameter der WCL -Serie, die hydraulisch Zylinder geschweißt
| TEIL NUMMER |
INSIDER DURCHMESSER |
AUSSENSEITER DURCHMESSER |
*A | B | C | D | *E | F | G | H | J | K | STANGE DURCHMESSER |
HAFEN |
| TWCL15- | 1,50 " | 2.00 " | 8.25 " | 1,62 " | 0,87 " | 1,37 " | 2.25 " | 1,37 " | 0,75 " | 0,76 " | 0,93 " | 1,87 " | 1,00 " | 3/8npt |
| TWCL20- | 2.00 " | 2,50 " | 10.25 " | 2.12 " | 1.12 " | 2.12 " | 3.12 " | 2.12 " | 1,00 " | 1.07 " | 1,00 " | 2.06 " | 1,25 " | 3/8npt |
| TWCL25- | 2,50 " | 3.00 " | 10.25 " | 2.12 " | 1.12 " | 2.12 " | 3.12 " | 2.12 " | 1,00 " | 1.01 " | 0,81 " | 2.18 " | 1,50 " | 1/2npt |
| TWCL30- | 3.00 " | 3,50 " | 10.25 " | 2.12 " | 1.12 " | 2.12 " | 3.12 " | 2.12 " | 1,00 " | 1.01 " | 0,81 " | 2.18 " | 1,50 " | 1/2npt |
| TWCL35- | 3,50 " | 4.00 " | 10.25 " | 2.37 " | 1.12 " | 2.00 " | 3.12 " | 2.12 " | 1,00 " | 1.01 " | 0,93 " | 2.18 " | 1,75 " | 1/2npt |
| TWCL40- | 4.00 " | 4,50 " | 10.25 " | 2.37 " | 1.12 " | 1,75 " | 3.12 " | 2.00 " | 1,00 " | 1.01 " | 1.06 " | 2.18 " | 2.00 " | 1/2npt |
| TWCL50- | 5.00 " | 5.50 " | 13.00 " | 3.12 " | 1,62 " | 2.25 " | 3.62 " | 2.25 " | 1,50 " | 1,51 " | 1,37 " | 2,75 " | 2,50 " | 1/2npt |
| *Für 8 "Strich:*a = 12,25" (2 "bis 4" Bohrung) | ||||||||||||||
| *Für 8 "Strich:*E = 5,12" (2 "bis 4" Bohrung) | ||||||||||||||
| *Für 1,50 "bis 4,00" Bohrung: SAE -Ports sind verfügbar | ||||||||||||||
| Dichtungstemperaturbereich: -30 ℃/+100 ℃ (-22 ° F/+212 ° F) | ||||||||||||||
| Maximale Geschwindigkeit abdichten: 3 ft/s | ||||||||||||||
| Maximal eingezogener Arbeitsdruck = 3000psi | ||||||||||||||
| Schweißem weiblicher Gabelzylinder | |||||||
| Teilenummer | STANGE DURCHMESSER |
Bohrung & SCHLAGANFALL |
Abmessungen | Portgröße | STIFT GRÖSSE |
GEWICHT (Lbs |
|
| Zurückgezogen | ERWEITERT | ||||||
| TWCL30-1504 | 1 | 1,5 "x4" | 14-1/4 " | 18-1/4 " | 3/8 npt | 3/4 | 8 |
| TWCL30-1506 | 1,5 "x6" | 16-1/4 " | 22-1/4 " | 9 | |||
| TWCL30-1508 | 1,5 "x8" | 18-1/4 " | 26-1/4 " | 11 | |||
| TWCL30-1510 | 1.5 "x10" | 20-1/4 " | 30-1/4 " | 12 | |||
| TWCL30-1512 | 1,5 "x12" | 22-1/4 " | 34-1/4 " | 13 | |||
| TWCL30-1514 | 1,5 "x14" | 24-1/4 " | 38-1/4 " | 14 | |||
| TWCL30-1516 | 1,5 "x16" | 26-1/4 " | 42-1/4 " | 15 | |||
| TWCL30-1518 | 1,5 "x18" | 28-1/4 ” | 46-1/4 " | 17 | |||
| TWCL30-1520 | 1,5 "x20" | 30-1/4 " | 50-1/4 " | 18 | |||
| TWCL30-1524 | 1,5 "x24" | 34-1/4 " | 58-1/4 " | 20 | |||
| TWCL30-2004 | 1-1/4 " | 2 "x4" | 14-1/4 " | 18-1/4 " | 3/8 npt | 1 " | 14 |
| TWCL30-2006 | 2 "x6" | 16-1/4 ” | 22-1/4 " | 16 | |||
| TWCL30-2008 | 2 "x8" | 18-1/4 " | 26-1/4 " | 18 | |||
| TWCL30-2010 | 2 "x10" | 20-1/4 " | 30-1/4 " | 19 | |||
| TWCL30-2012 | 2 "x12" | 22-1/4 " | 34-1/4 " | 21 | |||
| TWCL30-2014 | 2 "x14" | 24-1/4 " | 38-1/4 " | 23 | |||
| TWCL30-2016 | 2 "x16" | 26-1/4 " | 42-1/4 " | 25 | |||
| TWCL30-2018 | 2 "x18" | 28-1/4 " | 46-1/4 " | 26 | |||
| TWCL30-2020 | 2 "x20" | 30-1/4 " | 50-1/4 " | 28 | |||
| TWCL30-2024 | 2 "x24" | 34-1/4 " | 58-1/4 " | 31 | |||
| TWCL30-2028 | 2 "x28" | 38-1/4 " | 66-1/4 " | 35 | |||
| TWCL30-2030 | 2 "x30" | 40-1/4 " | 70-1/4 " | 36 | |||
| TWCL30-2032 | 2 "x32" | 42-1/4 " | 74-1/4 " | 38 | |||
| TWCL30-2034 | 2 "x34" | 44-1/4 " | 78-1/4 " | 40 | |||
| TWCL30-2036 | 2 "x36" | 46-1/4 " | 82-1/4 " | 42 | |||
| TWCL30-2040 | 2 "x40" | 50-1/4 " | 90-1/4 " | 45 | |||
| TWCL30-2048 | 2 "x48" | 58-1/4 " | 106-1/4 " | 52 | |||
| TWCL30-2504 | 1-1/2 " | 2,5 "x4" | 14-1/4 " | 18-1/4 " | 1/2 npt | 1 " | 18 |
| TWCL30-2506 | 2,5 "x6" | 16-1/4 " | 22-1/4 " | 20 | |||
| TWCL30-2508 | 2,5 "x8" | 18-1/4 " | 26-1/4 " | 24 | |||
| TWCL30-2510 | 2.5 "x10" | 20-1/4 " | 30-1/4 " | 25 | |||
| TWCL30-2512 | 2,5 "x12" | 22-1/4 " | 34-1/4 " | 27 | |||
| TWCL30-2514 | 2,5 "x14" | 24-1/4 " | 38-1/4 " | 29 | |||
| TWCL30-2516 | 2,5 "x16" | 26-1/4 " | 42-1/4 " | 32 | |||
| TWCL30-2518 | 2,5 "x18" | 28-1/4 " | 46-1/4 " | 34 | |||
| TWCL30-2520 | 2,5 "x20" | 30-1/4 " | 50-1/4 " | 36 | |||
| TWCL30-2524 | 2,5 "x24" | 34-1/4 " | 58-1/4 " | 40 | |||
| TWCL30-2528 | 2,5 "x28" | 38-1/4 " | 66-1/4 " | 45 | |||
| TWCL30-2530 | 2,5 "x30" | 40-1/4 " | 70-1/4 " | 47 | |||
| TWCL30-2532 | 2,5 "x32" | 42-1/4 " | 74-1/4 " | 49 | |||
| TWCL30-2534 | 2,5 "x34" | 44-1/4 ” | 78-1/4 " | 52 | |||
| TWCL30-2536 | 2,5 "x36" | 46-1/4 " | 82-1/4 " | 54 | |||
| TWCL30-2540 | 2,5 "x40" | 50-1/4 " | 90-1/4 " | 58 | |||
| TWCL30-2548 | 2,5 "x48" | 58-1/4 " | 106-1/4 " | 67 | |||
| Schweißig weibliche Gabelzylinder | |||||||
| Teilenummer | STANGE DURCHMESSER |
Bohrung & SCHLAGANFALL |
Abmessungen | Portgröße | STIFT GRÖSSE |
GEWICHT (Lbs) |
|
| Zurückgezogen | ERWEITERT | ||||||
| TWCL30-3004 | 1-1/2 " | 3 "x4" | 14-1/4 " | 18-1/4 " | 1/2npt | 1 " | 22 |
| TWCL30-3006 | 3 "x6" | 16-1/4 " | 22-1/4 " | 24 | |||
| TWCL30-3008 | 3 "x8" | 18-1/4 " | 26-1/4 " | 27 | |||
| TWCL30-3010 | 3 "x10" | 20-1/4 " | 30-1/4 " | 29 | |||
| TWCL30-3012 | 3 "x12" | 22-1/4 " | 34-1/4 " | 31 | |||
| TWCL30-3014 | 3 "x14" | 24-1/4 " | 38-1/4 " | 34 | |||
| TWCL30-3016 | 3 "x16" | 26-1/4 " | 42-1/4 " | 36 | |||
| TWCL30-3018 | 3 "x18" | 28-1/4 " | 46-1/4 " | 39 | |||
| TWCL30-3020 | 3 "x20" | 30-1/4 " | 50-1/4 " | 41 | |||
| TWCL30-3024 | 3 "x24" | 34-1/4 " | 58-1/4 " | 46 | |||
| TWCL30-3028 | 3 "x28" | 38-1/4 " | 66-1/4 " | 51 | |||
| TWCL30-3030 | 3 "x30" | 40-1/4 " | 70-1/4 " | 53 | |||
| TWCL30-3032 | 3 "x32" | 42-1/4 " | 74-1/4 " | 56 | |||
| TWCL30-3034 | 3 "x34" | 44-1/4 " | 78-1/4 " | 58 | |||
| TWCL30-3036 | 3 "x36" | 46-1/4 " | 82-1/4 " | 61 | |||
| TWCL30-3040 | 3 "x40" | 50-1/4 " | 90-1/4 " | 66 | |||
| TWCL30-3048 | 3 "x48" | 58-1/4 " | 106-1/4 " | 75 | |||
| TWCL30-3504 | 1-3/4 " | 3,5 "x4" | 14-1/4 " | 18-1/4 " | 1/2npt | 1 " | 27 |
| TWCL30-3506 | 3.5 "x6" | 16-1/4 " | 22-1/4 " | 30 | |||
| TWCL30-3508 | 3,5 "x8" | 18-1/4 " | 26-1/4 " | 35 | |||
| TWCL30-3510 | 3.5 "x10" | 20-1/4 " | 30-1/4 " | 36 | |||
| TWCL30-3512 | 3,5 "x12" | 22-1/4 " | 34-1/4 " | 39 | |||
| TWCL30-3514 | 3,5 "x14" | 24-1/4 " | 38-1/4 " | 42 | |||
| TWCL30-3516 | 3,5 "x16" | 26-1/4 " | 42-1/4 " | 46 | |||
| TWCL30-3518 | 3,5 "x18" | 28-1/4 " | 46-1/4 " | 49 | |||
| TWCL30-3520 | 3.5 "x20" | 30-1/4 " | 50-1/4 " | 52 | |||
| TWCL30-3524 | 3,5 "x24" | 34-1/4 " | 58-1/4 " | 58 | |||
| TWCL30-3528 | 3,5 "x28" | 38-1/4 " | 66-1/4 " | 64 | |||
| TWCL30-3530 | 3.5 "x30" | 40-1/4 " | 70-1/4 " | 67 | |||
| TWCL30-3532 | 3,5 "x32" | 42-1/4 " | 74-1/4 " | 70 | |||
| TWCL30-3534 | 3,5 "x34" | 44-1/4 " | 78-1/4 " | 73 | |||
| TWCL30-3536 | 3,5 "x36" | 46-1/4 " | 82-1/4 " | 76 | |||
| TWCL30-3540 | 3,5 "x40" | 50-1/4 " | 90-1/4 " | 82 | |||
| TWCL30-3548 | 3,5 "x48" | 58-1/4 " | 106-1/4 " | 94 | |||
| Schweißem weiblicher Gabelzylinder | |||||||
| Teilenummer | STANGE DURCHMESSER |
Bohrung & SCHLAGANFALL |
Abmessungen | Portgröße | STIFT GRÖSSE |
GEWICHT (Lbs) |
|
| Zurückgezogen | ERWEITERT | ||||||
| TWCL30-4004 | 2 " | 4.0 "x4" | 14-1/4 " | 18-1/4 " | 1/2npt | 1 " | 33 |
| TWCL30-4006 | 4.0 "x6" | 16-1/4 " | 22-1/4 " | 37 | |||
| TWCL30-4008 | 4.0 "x8" | 18-1/4 " | 26-1/4 " | 42 | |||
| TWCL30-4010 | 4.0 "x10" | 20-1/4 " | 30-1/4 " | 44 | |||
| TWCL30-4012 | 4.0 "x12" | 22-1/4 " | 34-1/4 " | 48 | |||
| TWCL30-4014 | 4.0 "x14" | 24-1/4 " | 38-1/4 " | 52 | |||
| TWCL30-4016 | 4.0 "x16" | 26-1/4 " | 42-1/4 " | 55 | |||
| TWCL30-4018 | 4.0 "x18" | 28-1/4 " | 46-1/4 " | 59 | |||
| TWCL30-4020 | 4.0 "x20" | 30-1/4 ” | 50-1/4 " | 63 | |||
| TWCL30-4024 | 4.0 "x24" | 34-1/4 " | 58-1/4 " | 70 | |||
| TWCL30-4028 | 4.0 "x28" | 38-1/4 " | 66-1/4 " | 77 | |||
| TWCL30-4030 | 4.0 "x30" | 40-1/4 " | 70-1/4 " | 81 | |||
| TWCL30-4032 | 4.0 "x32" | 42-1/4 " | 74-1/4 " | 85 | |||
| TWCL30-4034 | 4.0 "x34" | 44-1/4 " | 78-1/4 " | 89 | |||
| TWCL30-4036 | 4.0 "x36" | 46-1/4 " | 82-1/4 " | 92 | |||
| TWCL30-4040 | 4.0 "x40" | 50-1/4 " | 90-1/4 " | 100 | |||
| TWCL30-4048 | 4.0 "x48" | 58-1/4 " | 106-1/4 " | 114 | |||
| TWCL30-5004 | 2-1/2 " | 5.0 "x4" | 16-1/4 " | 20-1/4 " | 1/2npt | 1 " | 64 |
| TWCL30-5006 | 5.0 "x6" | 18-1/4 " | 24-1/4 " | 69 | |||
| TWCL30-5008 | 5.0 "x8" | 20-1/4 ” | 28-1/4 " | 74 | |||
| TWCL30-5010 | 5.0 "x10" | 22-1/4 " | 32-1/4 " | 79 | |||
| TWCL30-5012 | 5.0 "x12" | 24-1/4 " | 36-1/4 " | 84 | |||
| TWCL30-5014 | 5.0 "x14" | 26-1/4 " | 40-1/4 " | 89 | |||
| TWCL30-5016 | 5.0 "x16" | 28-1/4 " | 42-1/4 " | 95 | |||
| TWCL30-5018 | 5.0 "x18" | 30-1/4 " | 48-1/4 " | 100 | |||
| TWCL30-5020 | 5.0 "x20" | 32-1/4 " | 52-1/4 " | 105 | |||
| TWCL30-5024 | 5.0 "x24" | 36-1/4 " | 60-1/4 " | 115 | |||
| TWCL30-5028 | 5.0 "x28" | 40-1/4 " | 68-1/4 " | 125 | |||
| TWCL30-5030 | 5.0 "x30" | 42-1/4 " | 72-1/4 " | 130 | |||
| TWCL30-5032 | 5.0 "x32" | 44-1/4 " | 76-1/4 " | 136 | |||
| TWCL30-5034 | 5.0 "x34" | 46-1/4 " | 80-1/4 " | 141 | |||
| TWCL30-5036 | 5.0 "x36" | 48-1/4 " | 84-1/4 " | 146 | |||
| TWCL30-5040 | 5.0 "x40" | 52-1/4 " | 92-1/4 " | 156 | |||
| TWCL30-5048 | 5.0 "x48" | 60-1/4 " | 108-1/4 " | 177 | |||
Standard -Hydraulikzylinderdetails der WCL -Serie
