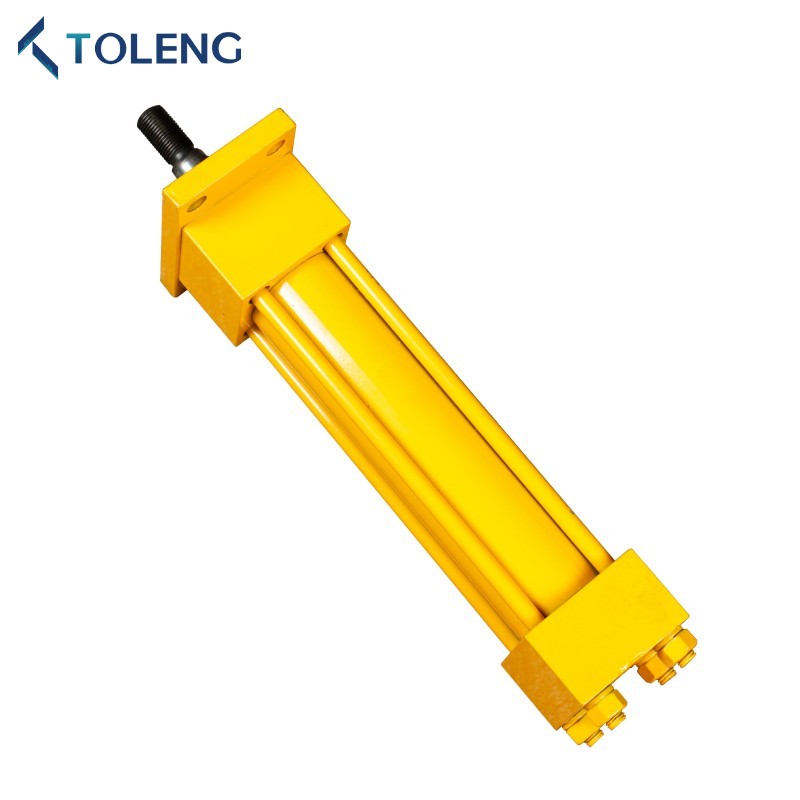

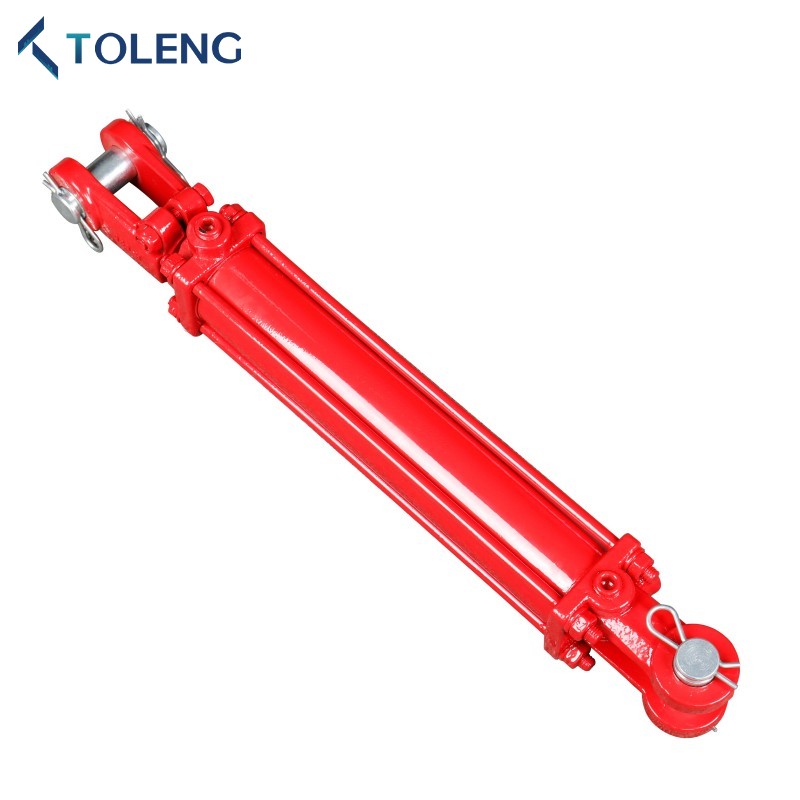

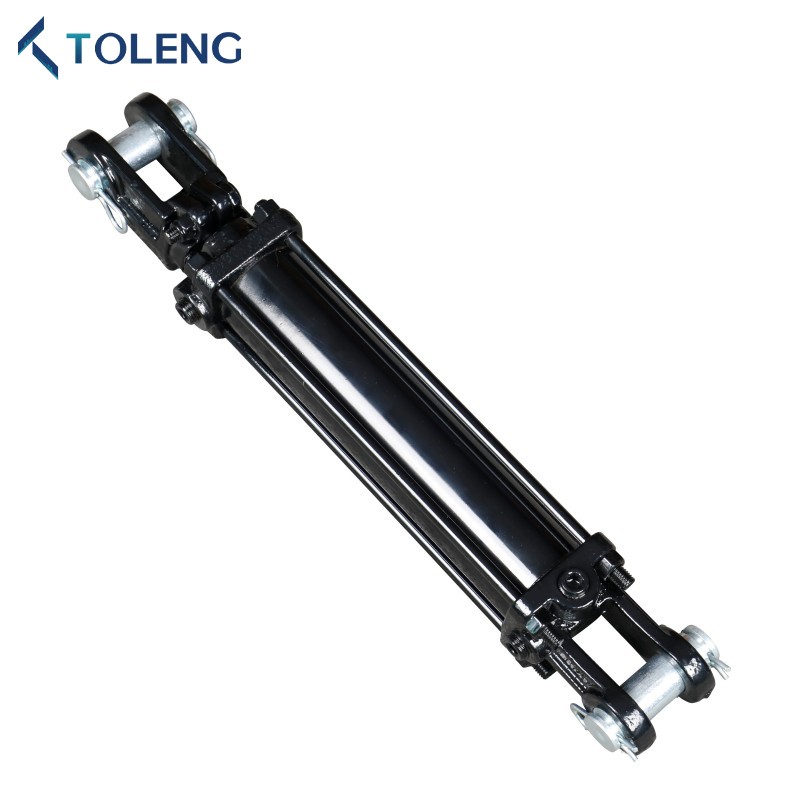

Standard-TR-Serien-Tie-Rod-Hydraulikzylinder
Toleng ist ein professioneller hydraulischer Zylinderhersteller und Lieferant in China. Wir haben uns seit mehr als 20 Jahren auf hydraulischen Zylinder für Standard-Tie-Rod-Hydraulikzylinder für TR-Serien spezialisiert. Unsere Produkte wurden an Verbraucher auf der ganzen Welt exportiert und haben einen guten Ruf erhalten. Wir freuen uns auf eine langfristige Geschäftspartnerschaft mit Ihnen.
Anfrage absenden
Produktbeschreibung
Toleng Standard TR-Serien-Tie-Rod-Hydraulikzylinder ist eine wichtige Komponente im Bereich Agrarmaschinen, der für seine zuverlässige und effiziente Leistung bekannt ist. Es ist akribisch mit Präzision und Haltbarkeit konzipiert und garantiert in verschiedenen landwirtschaftlichen Anwendungen reibungslos. Unser Standard-Tie-Rod-Hydraulikzylinder von TR-Serien verfügt über eine Vielzahl von Spezifikationen, um die spezifischen Anforderungen zu erfüllen.
Standard-TR-Serien-Tie-Rod-Hydraulikzylinderanwendung
Toleng Standard TR-Serien-Tie-Rod-Hydraulikzylinder findet in erster Linie in der landwirtschaftlichen Maschinenindustrie umfangreiche Verwendung. Es wird häufig in verschiedenen landwirtschaftlichen Maschinen wie Traktorbefehl, Kombinieren von Ernte, Sämaschine usw. verwendet.
Standard-TR-Serien-Tie-Rod-Hydraulikzylinderspezifikation
1.Abble-wirkende Anwendungen
2.tube: hochwertig geschliffen/gekaltes kalt gezeichnete Pfeife
3. Piston-Stab: hohe Festigkeit verhärtet, hart verchromt
4. Piston: duktiles Eisen
5. Tie-Rods: hoher Zugstahl
6. Arbeitsdruck: 2500/3000 psi
7.Paint: Schwarz, grün, rot, gelb usw. sind benutzerdefinierte Farben erhältlich.
2.tube: hochwertig geschliffen/gekaltes kalt gezeichnete Pfeife
3. Piston-Stab: hohe Festigkeit verhärtet, hart verchromt
4. Piston: duktiles Eisen
5. Tie-Rods: hoher Zugstahl
6. Arbeitsdruck: 2500/3000 psi
7.Paint: Schwarz, grün, rot, gelb usw. sind benutzerdefinierte Farben erhältlich.
Standard-Tie-Ser-Rod-Hydraulikzylinder-technische Parameter Tie-Rod
| TEIL NUMMER |
INSIDER DURCHMESSER |
AUSSENSEITER DURCHMESSER |
*A | B | *C | D | *E | F | *G | H | I | J | STANGE FADEN |
HAFEN |
| TTR3-20- | 2.00 " | 2,50 " | 10.25 " | 2.00 " | 1.01 " | 2.00 " | 3.75 " | 2.25 " | 1.12 " | 2.06 " | 2.12 " | 2.62 " | 1.125-12 UNF | SAE#8 |
| TTR3-25- | 2,50 " | 3.00 " | 10.25 " | 2.00 " | 1.01 " | 2.00 " | 3.75 " | 2.25 " | 1.12 " | 2.06 " | 2.12 " | 2.62 " | 1.125-12 UNF | SAE#8 |
| TTR3-30- | 3.00 " | 3,50 " | 10.25 " | 2.25 " | 1.01 " | 2.25 " | 3.75 " | 2.25 " | 1.12 " | 2.06 " | 2.12 " | 2.62 " | 1.250-12 UNF | SAE#8 |
| TTR3-35- | 3,50 " | 4.00 " | 10.25 " | 2,50 " | 1.01 " | 2,50 " | 3.62 " | 2,50 " | 1.12 " | 2.06 " | 2.12 " | 2,75 " | 1.250-12 UNF | SAE#8 |
| TTR3-40- | 4.00 " | 4,50 " | 10.25 " | 2,50 " | 1.01 " | 2,50 " | 3.56 " | 2.62 " | 1.12 " | 2.06 " | 2.12 " | 2,75 " | 1.250-12 UNF | SAE#8 |
| TTR3-50-50 | 5.00 " | 5.50 " | 12.25 " | 2,87 " | 1,26 " | 2,75 " | 4.18 " | 3,50 " | 1.12 " | 2.25 " | 2.12 " | 3.31 " | 1,500-12 UNF | SAE#10 |
| *Für 8.00 "ASAE Hub:*a = 12,25" und für 16,00 "ASAE -Schlaganfall:*a = 15,50" | ||||||||||||||
| *Für 8,00 "Strich:*E = 5,75" (2,00 "bis 3,00" Bohrung)*E = 5,62 "(3,50" Bohrung*E = 5,56 "(4,00" Bohrung) | ||||||||||||||
| *Für 16.00 "ASAE Hub:*e = 9,00" (2,00 "bis 3,00" Bohrung)*E = 8,87 "(3,50" Bohrung)*e = 8,81 "(4,00" Bohrung) = 7,43 "(5,00" Bohrung) | ||||||||||||||
| *Für 5.00 "Bohrung:*g (Front -Gabel) = 1,18"*G (Endkappe) = 1,31 " | ||||||||||||||
| *For16.00 "ASAE STROKEA:*C = 126" | ||||||||||||||
| Dichtungstemperaturbereich: -30 ℃/+100 ℃ (-22 "f/+212" f) | ||||||||||||||
| Maximale Geschwindigkeit abdichten: 3 ft/s | ||||||||||||||
| Maximal zurückgezogener Arbeitsdruck = 3000 psi | ||||||||||||||
| Die Abmessungen *A und *E sind nur für Referenzen, nur wenn Gabelung einstellbar ist | ||||||||||||||
| Tie-Rod-Zylinder | |||||||
| Teilenummer | STANGE DURCHMESSER |
Bohrung & SCHLAGANFALL |
Abmessungen | Portgröße | STIFT GRÖSSE |
GEWICHT (Lbs) |
|
| Zurückgezogen | ERWEITERT | ||||||
| TTR30-2004 | 1-1/8 " | 2 "x4" | 14-1/4 " | 18-1/4 " | 3/8 "npt & SAE#8 |
1 " | 16.8 |
| TTR30-2006 | 2 "x6" | 16-1/4 " | 22-1/4 " | 18.4 | |||
| TTR30-2008 | 2 "x8" | 18-1/4 " | 26-1/4 " | 20.0 | |||
| TTR30-2008-AASA | 2 "x8" | 20-1/4 " | 28-1/4 " | 20.5 | |||
| TTR30-2010 | 2 "x10" | 20-1/4 " | 30-1/4 " | 21.5 | |||
| TTR30-2012 | 2 "x12" | 22-1/4 " | 34-1/4 " | 23.1 | |||
| TTR30-2014 | 2 "x14" | 24-1/4 " | 38-1/4 " | 24.7 | |||
| TTR30-2016 | 2 "x16" | 26-1/4 " | 42-1/4 " | 26.3 | |||
| TTR30-2016-ASAE | 2 "x16" | 31-1/4 " | 47-1/4 " | 26.9 | |||
| TTR30-2018 | 2 "x18" | 28-1/4 " | 46-1/4 " | 279 | |||
| TTR30-2020 | 2 "x20" | 30-1/4 " | 50-1/4 " | 29.5 | |||
| TTR30-2024 | 2 "x24" | 34-1/4 " | 58-1/4 " | 32.6 | |||
| TTR30-2030 | 2 "x30" | 40-1/4 " | 70-1/4 " | 37.4 | |||
| TTR30-2036 | 2 "x36" | 46-1/4 " | 82-1/4 " | 42.2 | |||
| TTR30-2040 | 2 "x40" | 50-1/4 " | 90-1/4 " | 45.3 | |||
| TTR30-2048 | 2 "x48" | 58-1/4 " | 106-1/4 " | 51.7 | |||
| TTR30-2504 | 1-1/4 " | 2,5 "x4" | 14-1/4 " | 18-1/4 " | 3/8 "npt & Sae# |
1 ” | 18.6 |
| TTR30-2506 | 2,5 "x6" | 16-1/4 " | 22-1/4 " | 20.9 | |||
| TTR30-2508 | 2,5 "x8" | 18-1/4 " | 26-1/4 " | 22.8 | |||
| TTR30-2508-ASAE | 2,5 "x8" | 20-1/4 " | 28-1/4 " | 23.6 | |||
| TTR30-2510 | 2,5 "x10" | 20-1/4 " | 30-1/4 " | 25.5 | |||
| TTR30-2512 | 2,5 "x12" | 22-1/4 " | 34-1/4 " | 27.8 | |||
| TTR30-2514 | 2,5 "x14" | 24-1/4 " | 38-1/4 " | 30.2 | |||
| TTR30-2516 | 2,5 "x16" | 26-1/4 " | 42-1/4 " | 32.5 | |||
| TTR30-2516-AASA | 2,5 "x16" | 31-1/4 " | 47-1/4 " | 33.4 | |||
| TTR30-2518 | 2,5 "x18" | 28-1/4 " | 46-1/4 " | 34.8 | |||
| TTR30-2520 | 2,5 "x20" | 30-1/4 " | 50-1/4 " | 371 | |||
| TTR30-2524 | 2,5 "x24" | 34-1/4 " | 58-1/4 " | 41.8 | |||
| TTR30-2530 | 2,5 "x30" | 40-1/4 " | 70-1/4 " | 43.6 | |||
| TTR30-2536 | 2,5 "x36" | 46-1/4 " | 82-1/4 " | 49.6 | |||
| TTR30-2540 | 2,5 "x40" | 50-1/4 " | 90-1/4 " | 53.7 | |||
| TTR30-2548 | 2,5 "x48" | 58-1/4 " | 106-1/4 " | 61.7 | |||
| Tie-Rod-Zylinder | |||||||
| Teilenummer | STANGE DURCHMESSER |
Bohrung8 SCHLAGANFALL |
Abmessungen | Portgröße | STIFT GRÖSSE |
GEWICHT (Lbs) |
|
| Zurückgezogen | ERWEITERT | ||||||
| TTR30-3004 | 1-1/4 " | 3 "x4" | 14-1/4 " | 18-1/4 " | 1/2 "npt & SAE#8 |
1 " | 22.1 |
| TTR30-3006 | 3 "x6" | 16-1/4 " | 22-1/4 " | 24.0 | |||
| TTR30-3008 | 3 "x8" | 18-1/4 " | 26-1/4 " | 26.1 | |||
| TTR30-3008-ASAE | 3 "x8" | 20-1/4 " | 28-1/4 " | 8.4 | |||
| TTR30-3010 | 3 "x10" | 20-1/4 " | 30-1/4 " | 28.2 | |||
| TTR30-3012 | 3 "x12" | 22-1/4 " | 34-1/4 " | 30.3 | |||
| TTR30-3014 | 3 "x14" | 24-1/4 " | 38-1/4 " | 32.4 | |||
| TTR30-3016 | 1-1/2 " | 3 "x16" | 26-1/4 " | 42-1/4 " | 38.7 | ||
| TTR30-3016-AASA | 3 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 39.4 | ||
| TTR30-3018 | 3 "x18" | 28-1/4 " | 46-1/4 " | 1 " | 41.2 | ||
| TTR30-3020 | 3 "x20 ' | 30-1/4 " | 50-1/4 " | 43.8 | |||
| TTR30-3024 | 3 "x24 | 34-1/4 " | 58-1/4 " | 470 | |||
| TTR30-3030 | 3 "x30" | 40-1/4 " | 70-1/4 " | 54.3 | |||
| TTR30-3036 | 3 "x36" | 46-1/4 " | 82-1/4 " | 61.4 | |||
| TTR30-3040 | 3 "x40" | 50-1/4 " | 90-1/4 " | 66.2 | |||
| TTR30-3048 | 3 "x48" | 58-1/4 " | 106-1/4 " | 75.9 | |||
| TTR30-3504 | 1-1/4 " | 3,5 "x4" | 14-1/4 ” | 18-1/4 " | 1/2 "npt & SAE#8 |
1 " | 26.0 |
| TTR30-3506 | 3.5 "x6" | 16-1/4 " | 22-1/4 " | 27.8 | |||
| TTR30-3508 | 3,5 "x8" | 18-1/4 " | 26-1/4 " | 30.7 | |||
| TTR30-3508-ASAE | 3,5 "x8" | 20-1/4 " | 28-1/4 " | 9.9 | |||
| TTR30-3510 | 3.5 "x10" | 20-1/4 " | 30-1/4 " | 33.6 | |||
| TTR30-3512 | 3,5 "x12" | 22-1/4 " | 34-1/4 " | 36.6 | |||
| TTR30-3514 | 3,5 "x14" | 24-1/4 " | 38-1/4 " | 39.5 | |||
| TTR30-3516 | 1-1/2 " | 3,5 "x16" | 26-1/4 " | 42-1/4 " | 46.6 | ||
| TTR30-3516-AASA | 3,5 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 476 | ||
| TTR30-3518 | 3,5 "x18" | 28-1/4 " | 46-1/4 " |
1 " |
50.0 | ||
| TTR30-3520 | 3.5 "x20" | 30-1/4 " | 50-1/4 " | 53.3 | |||
| TTR30-3524 | 3,5 "x24" | 34-1/4 " | 58-1/4 " | 69.2 | |||
| TTR30-3530 | 3.5 "x30" | 40-1/4 " | 70-1/4 " | 679 | |||
| TTR30-3536 | 3,5 "x36" | 46-1/4 " | 82-1/4 " | 77.5 | |||
| TTR30-3540 | 3,5 "x40" | 50-1/4 " | 90-1/4 " | 84.0 | |||
| TTR30-3548 | 3,5 "x48" | 58-1/4 " | 106-1/4 " | 96.8 | |||
| Tie-Rod-Zylinder | |||||||
| Teilenummer | STANGE DURCHMESSER |
Bohrung & SCHLAGANFALL |
Abmessungen | Portgröße | STIFT GRÖSSE |
GEWICHT (Lbs) |
|
| Zurückgezogen | ERWEITERT | ||||||
| TTR30-4004 | 1-1/2 " | 4 "x4" | 14-1/4 " | 18-1/4 " | 1/2 "npt & SAE#8 |
1 " | 52.0 |
| TTR30-4006 | 4 "x6" | 16-1/4 " | 22-1/4 " | 55.6 | |||
| TTR30-4008 | 4 "x8" | 18-1/4 " | 26-1/4 " | 58.9 | |||
| TTR30-4008-ASAE | 4 "x8" | 20-1/4 " | 28-1/4 " | 18.7 | |||
| TTR30-4010 | 4 "x10" | 20-1/4 " | 30-1/4 " | 62.8 | |||
| TTR30-4012 | 4 "x12" | 22-1/4 " | 34-1/4 " | 66.4 | |||
| TTR30-4014 | 4 "x14" | 24-1/4 " | 38-1/4 " | 70.0 | |||
| TTR30-4016 | 1-3/4 " | 4 "x16" | 26-1/4 " | 42-1/4 " | 84.2 | ||
| TTR30-4016-AASA | 4 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 85.2 | ||
| TTR30-4018 | 4 "x18" | 28-1/4 " | 46-1/4 " | 1 " | 84.7 | ||
| TTR30-4020 | 4 "x20" | 30-1/4 " | 50-1/4 " | 85.1 | |||
| TTR30-4024 | 4 "x24" | 34-1/4 " | 58-1/4 " | 93.1 | |||
| TTR30-4030 | 2 " | 4 "x30" | 40-1/4 " | 70-1/4 " | 111.6 | ||
| TTR30-4036 | 4 "x36" | 46-1/4 " | 82-1/4 " | 124.8 | |||
| TTR30-4040 | 4 "x40" | 50-1/4 " | 90-1/4 " | 133.6 | |||
| TTR30-4048 | 4 "x48" | 58-1/4 " | 106-1/4 ” | 151.1 | |||
| TTR30-5004 | 2 " | 5 "x4" | 16-1/4 " | 20-1/4 " | 1/2 "NPI & SAE#10 |
1-1/4 " | 59.7 |
| TTR30-5006 | 5 "x6" | 18-1/4 " | 24-1/4 " | 64.9 | |||
| TTR30-5008 | 5 "x8" | 20-1/4 " | 28-1/4 " | 70.2 | |||
| TTR30-5010 | 5 "x10" | 22-1/4 " | 32-1/4 " | 75.4 | |||
| TTR30-5012 | 5 "x12" | 24-1/4 " | 36-1/4 " | 80.7 | |||
| TTR30-5014 | 5 "x14" | 26-1/4 " | 40-1/4 " | 85.9 | |||
| TTR30-5016 | 5 "x16" | 28-1/4 " | 44-1/4 " | 91.2 | |||
| TTR30-5016-AASA | 5 "x16" | 31-1/4 " | 47-1/4 " | 92.9 | |||
| TTR30-5018 | 5 "x18" | 30-1/4 " | 48-1/4 " | 96.4 | |||
| TTR30-5020 | 5 "x20" | 32-1/4 " | 52-1/4 " | 101.7 | |||
| TTR30-5024 | 5 "x24" | 36-1/4 " | 60-1/4 " | 112.1 | |||
| TTR30-5030 | 5 "x30" | 42-1/4 " | 72-1/4 " | 12Z9 | |||
| TTR30-5036 | 5 "x36" | 48-1/4 " | 84-1/4 " | 143.6 | |||
| TTR30-5040 | 5 "x40" | 50-1/4 " | 90-1/4 " | 154.1 | |||
| TTR30-5048 | 5 "x48" | 60-1/4 " | 108-1/4 " | 175.1 | |||
